• Instant Open/Close Detection

• Long-Range Wireless 433MHz Transmission

• Ultra-Low Power Consumption (CR2450 Battery)

• Real-Time Door/Window Protection

• Anti-Interference ASK Modulation

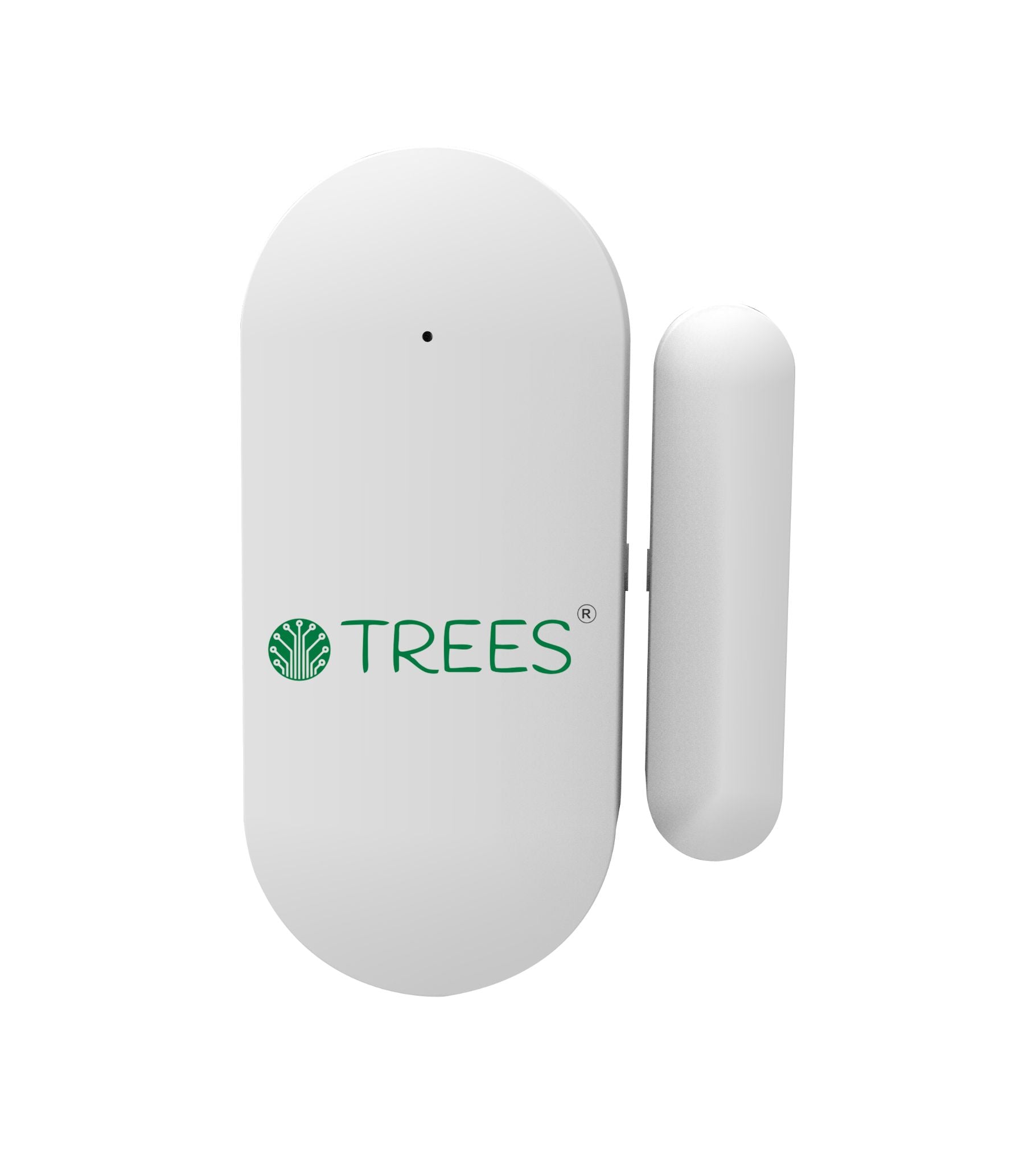

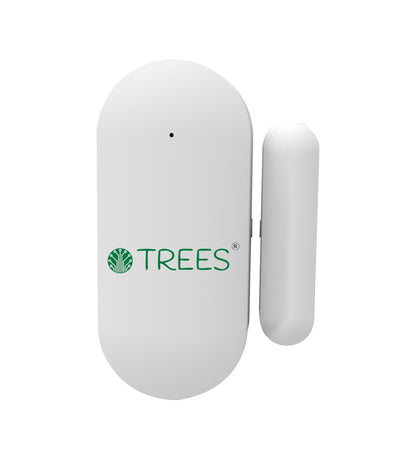

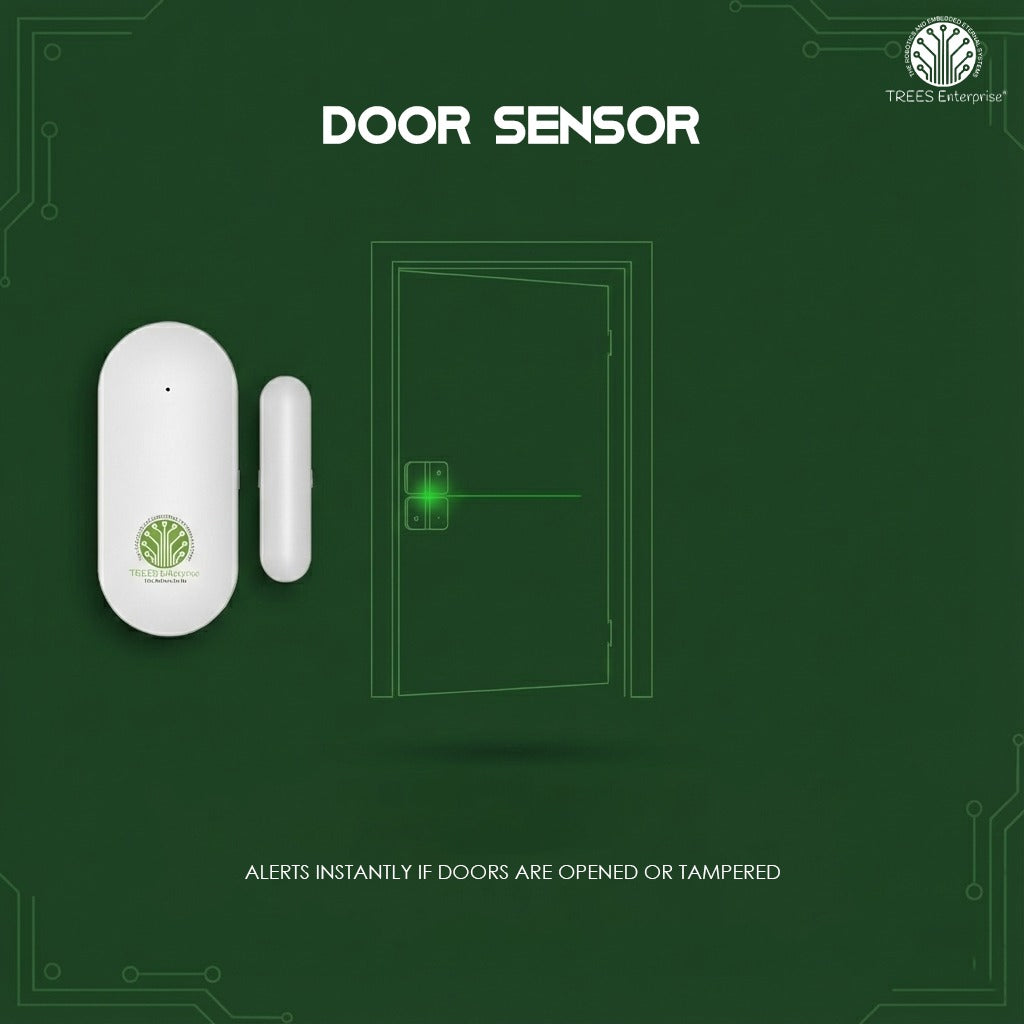

The T568R Wireless Door/Window Sensor uses advanced Hall-switch technology to detect the opening and closing of doors and windows in real time. With strong anti-interference performance, ultra-low power consumption, and 433 MHz wireless transmission, it provides reliable security for homes, offices, shops, and warehouses.

Smart Magnetic Sensor for Door & Window Protection

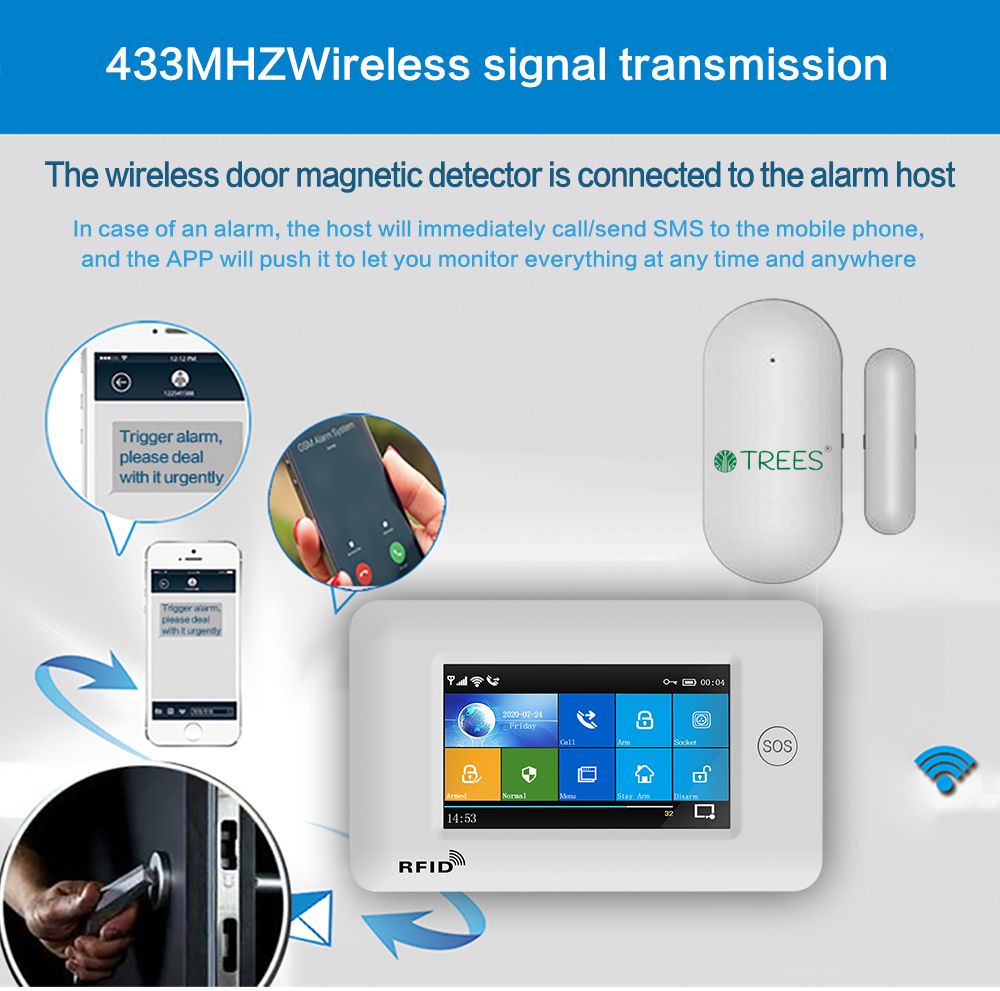

This wireless sensor instantly detects when a door or window is opened and sends an alarm signal to your security host. It uses ASK modulation and operates at 433 MHz, ensuring stable and long-distance communication with minimal interference.

Accurate Real-Time Detection

Thanks to Hall-switch sensing technology, the system detects even the smallest movement between the sensor and magnet—perfect for anti-theft protection.

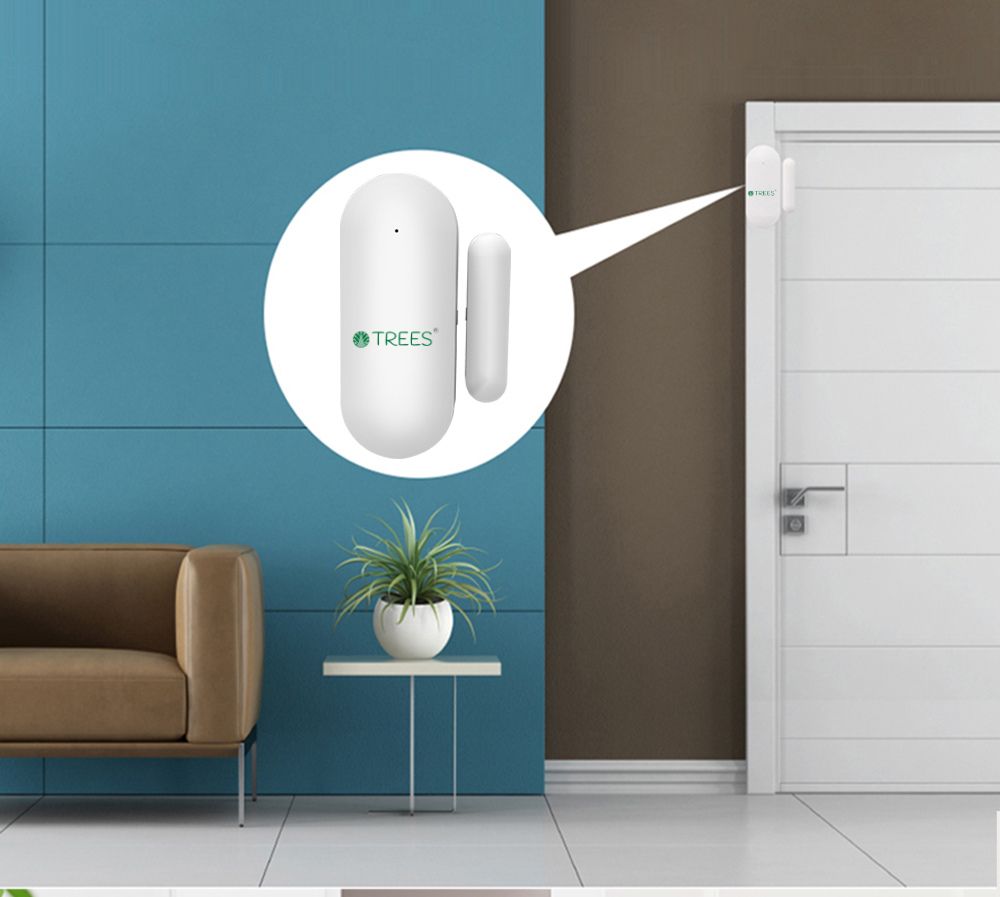

Easy Installation Anywhere

Simply mount the main body on the door frame and the magnet on the moving door or window. Ensure a gap of ≤20mm for accurate detection (as shown in the installation diagram) .

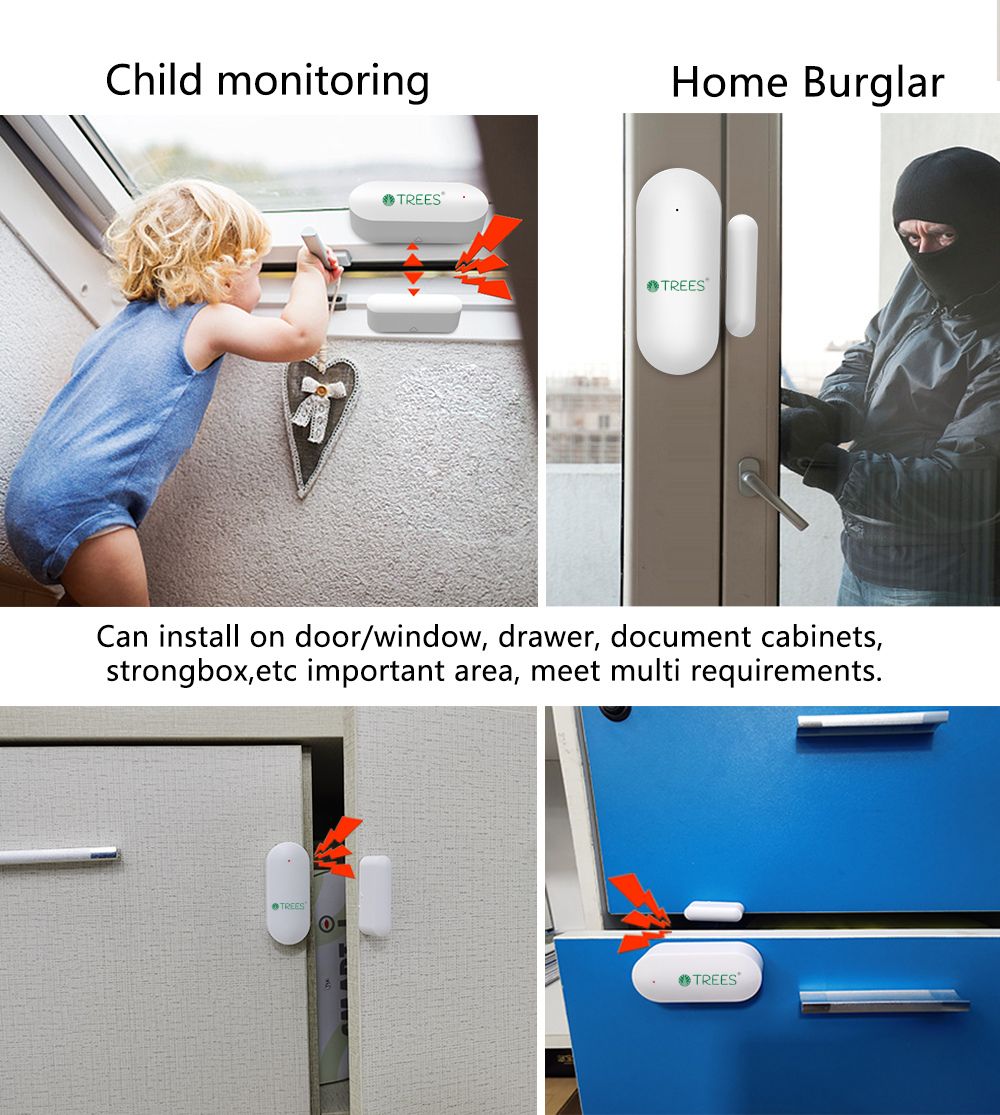

Ideal for All Security Setups

Suitable for residential homes, commercial shops, offices, warehouses, and storage rooms.

🔑 KEY FEATURES

• Hall-Switch Sensing Technology – highly accurate door/window detection

• Wireless 433 MHz ASK Modulation – stable signal with strong anti-interference

• ≤20mm Detection Distance – responds instantly when opened

• Ultra-Low Power Consumption – powered by CR2450 coin cell

• Tamper Protection – triggers alarm if the device is removed or tampered

• Simple Installation – adhesive or screw mounting

• Long Wireless Range – up to 100m in open area

• Compact & Sleek Design – blends with any interior

• IP54 Dust & Splash Protection – durable for most environments

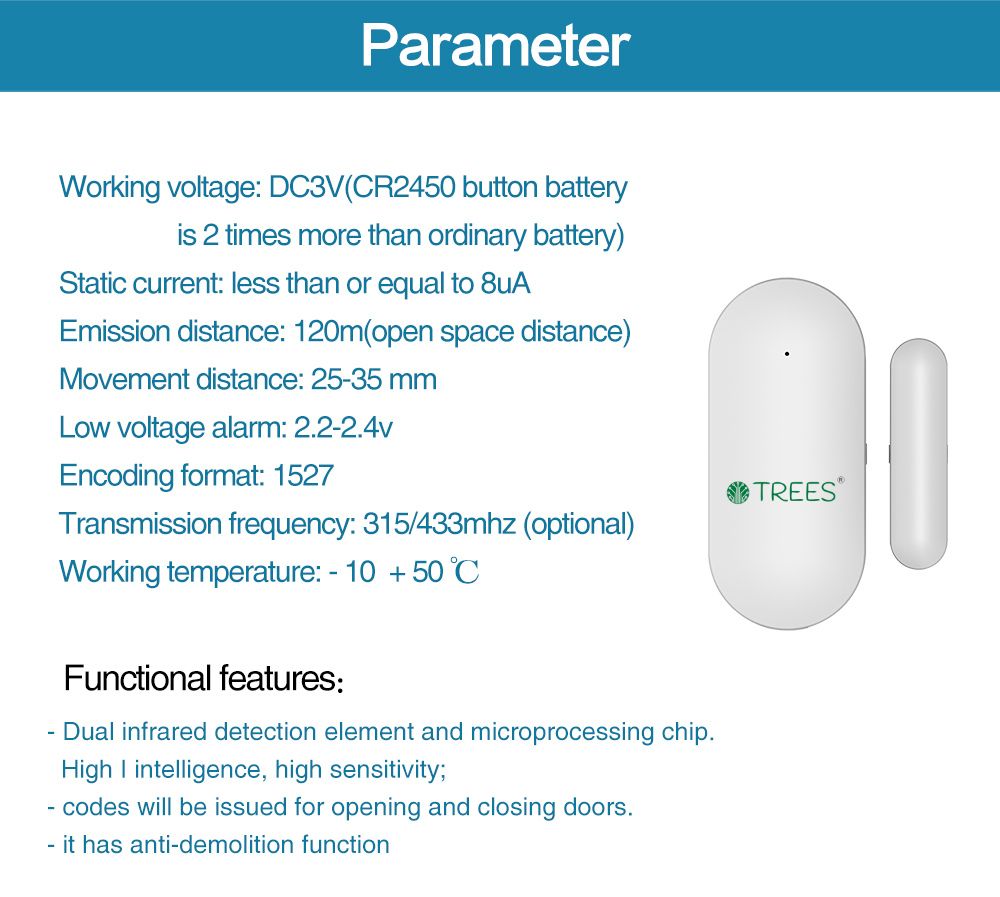

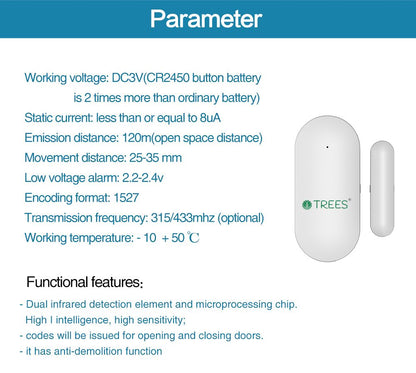

📦 TECHNICAL SPECIFICATIONS

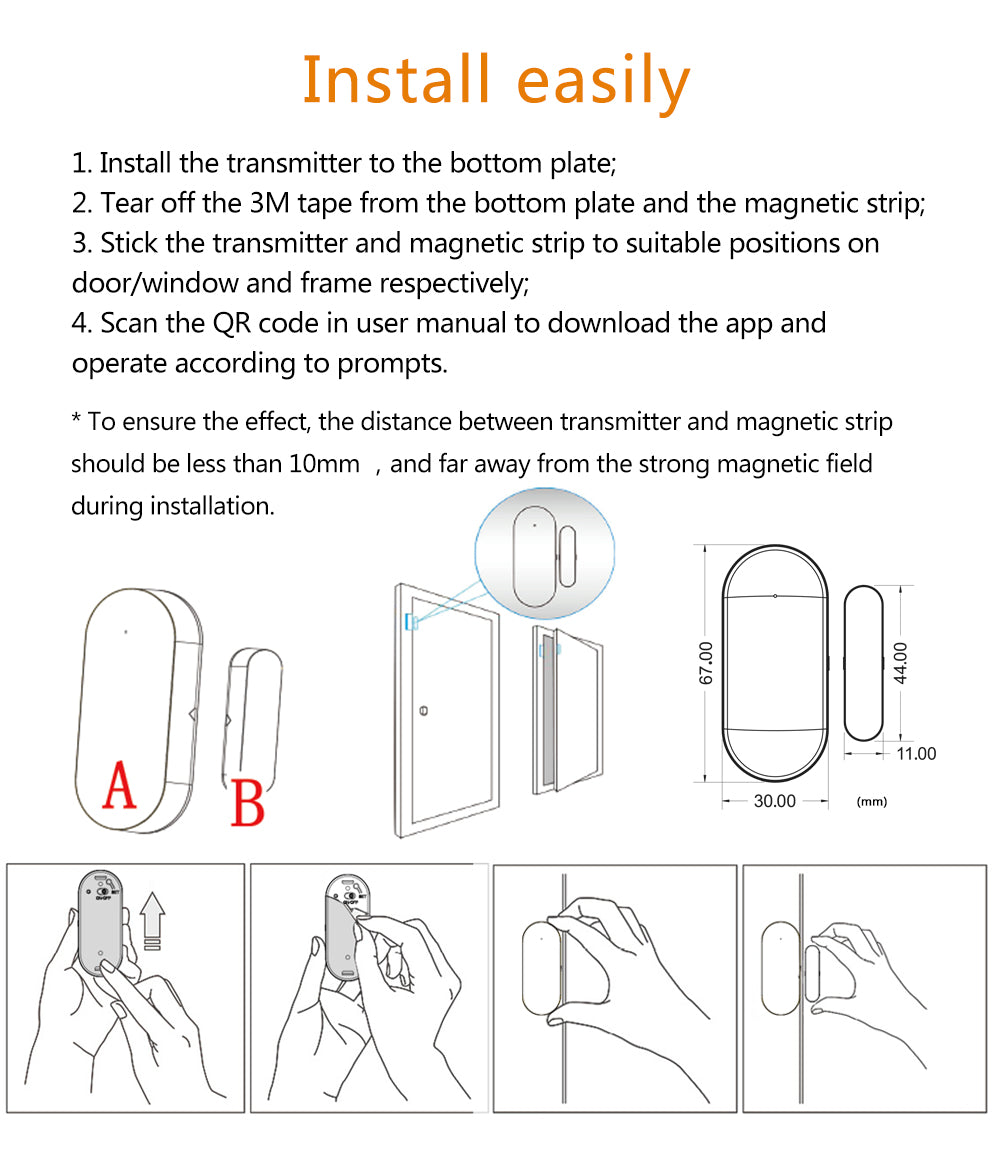

🛠 INSTALLATION GUIDE

1. Install the main sensor on the fixed door/window frame.

2. Install the magnet strip on the moving part of the door/window.

3. Ensure the distance between them is ≤20mm for accurate activation.

4. Avoid metal surfaces or strong magnetic fields (as warned in PDF).

5. Insert the CR2450 battery, switch to ON, LED will blink once confirming startup.

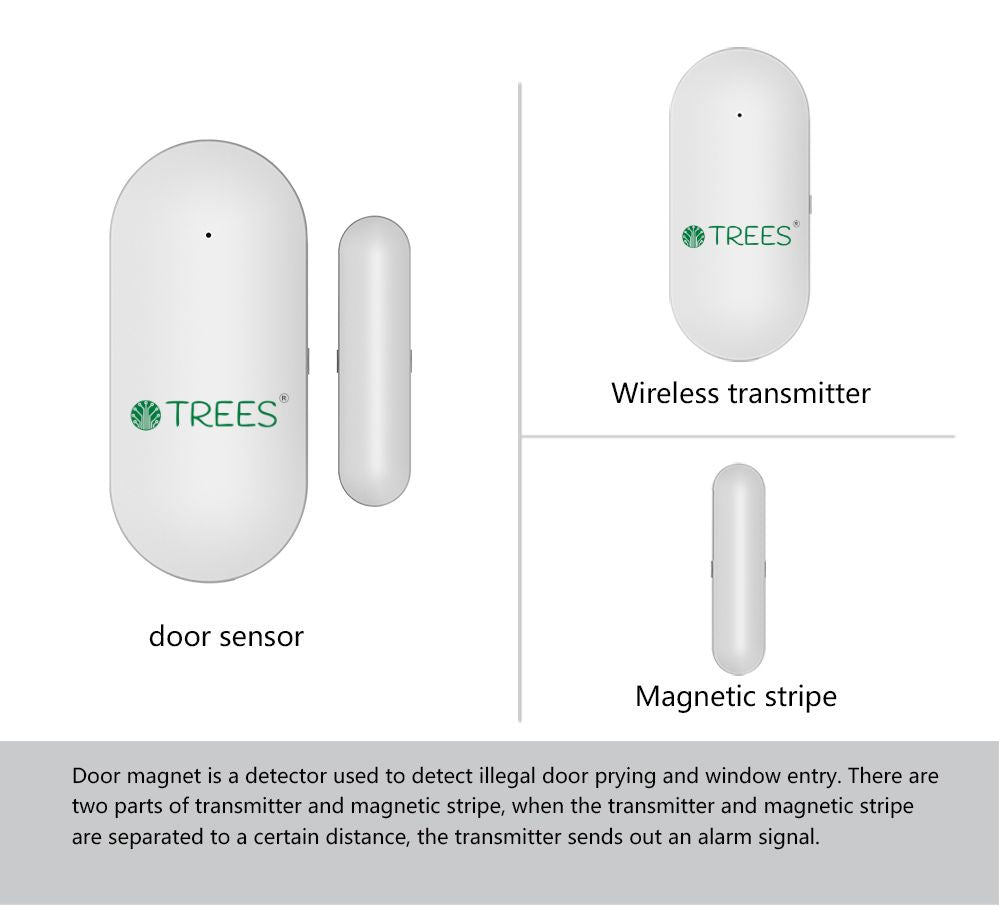

📡 HOW IT WORKS

• When the door/window opens → magnet separates → sensor sends wireless alarm signal.

• When closed → magnet aligns → sensor returns to normal mode.

• When tampered → LED flashes & alarm triggers.

🙋 FAQs

1. Will this work with any alarm host?
✔ Works with most 433MHz ASK alarm systems.

2. How long does the battery last?
✔ Due to ultra-low power consumption, typically several months to 1 year.

3. Can I install it on metal doors?
✘ Not recommended—metal interferes with signal.

4. Does it detect tampering?
✔ Yes, it includes a built-in tamper switch.

🛡 TROUBLESHOOTING

🔧 MAINTENANCE

• Check magnet alignment every 6 months

• Inspect battery & contacts

• Remove battery if unused for long periods

Secure every entry point. Add this Wireless Door/Window Sensor to your security system today!
